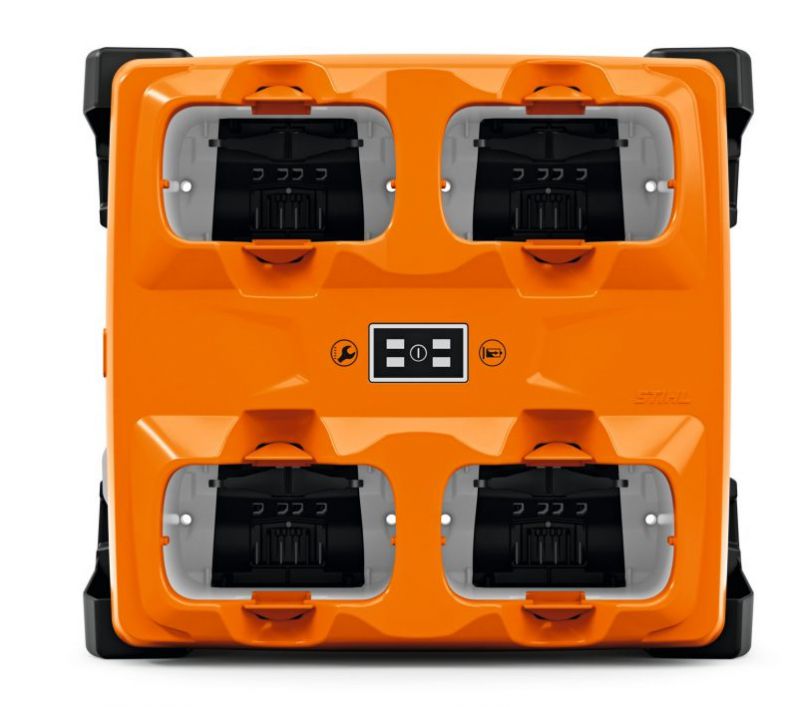

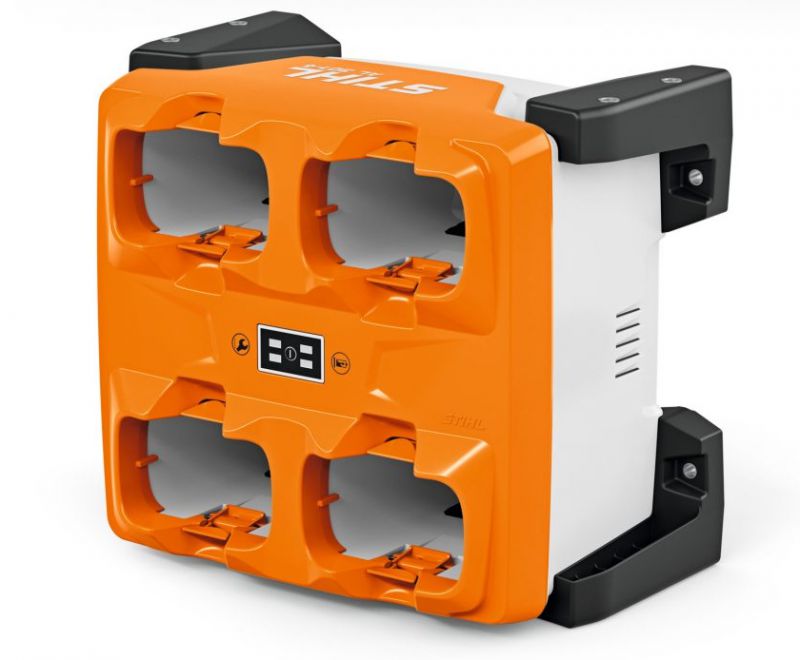

AL 301-4 Multiple battery charger: 230 Volt, 6.5 Amp charger for AP System batteries
230 V. Multiple battery charger for sequential charging of up to 4x AP batteries or AR L batteries (AR L connecting cable & adapter required).
This AL 301-4 has a 6.5 A charging current for fast recharge times and a built-in fan for active battery cooling. It automatically switches off when the battery is fully charged to prevent overcharging. And it has an LED indicator which shows you when the battery is charging or is fully charged.
A built in cable tie with Velcro strap on the back means you can wind the cable to the charger to reduce its length. Plus, this charger can be secured to a wall, shelf, or permanently installed in a vehicle. The AL 301-4 can also be fitted to the CB 1 charging box.
Technical details
Rated voltage 220-240 V
Rated current 2.3 A
Power consumption 300 W
Weight 4.4 kg
Charging current 6.50 A
Charging power 276 W
Width 354 mm
Length 315 mm
AP System charge times (80/100%)
AP 20 battery 30 mins / 50 mins
AP 200 S battery 40 mins / 55 mins
AP 30 battery 60 mins / 80 mins
AP 300 S battery 55 mins / 80 mins
AP 500 S battery 70 mins / 90 mins
AR 2000 L battery 220 mins / 290 mins
AR 3000 L battery 330 mins / 430 mins
Cannot be used with AK batteries.
Product Details
Sequential charging of up to 4 batteries
Multiple battery charger for the STIHL AP System
Can be used in a vehicle, workshop or at home
Space-saving - can be lined up and stacked
View charge levels with the push of a button
